DISHWASHER / FIND THE CAUSE
Dishwasher Air Gap Leaking? What to Check Before Buying Parts
That small fitting beside the faucet is trying to keep drain water from backing into the dishwasher. An overflow is a reason to investigate the drain path, not hide the opening.
Sergeant Plumber Corp. · Veteran-owned · Practical plumbing, smarter buying
The short answer
Stop the dishwasher and check the air gap and its downstream drain path. Debris, a restricted hose, a backed-up sink, or a disposal connection issue can cause water to escape at the air gap. Never plug the vent to force the water somewhere else.

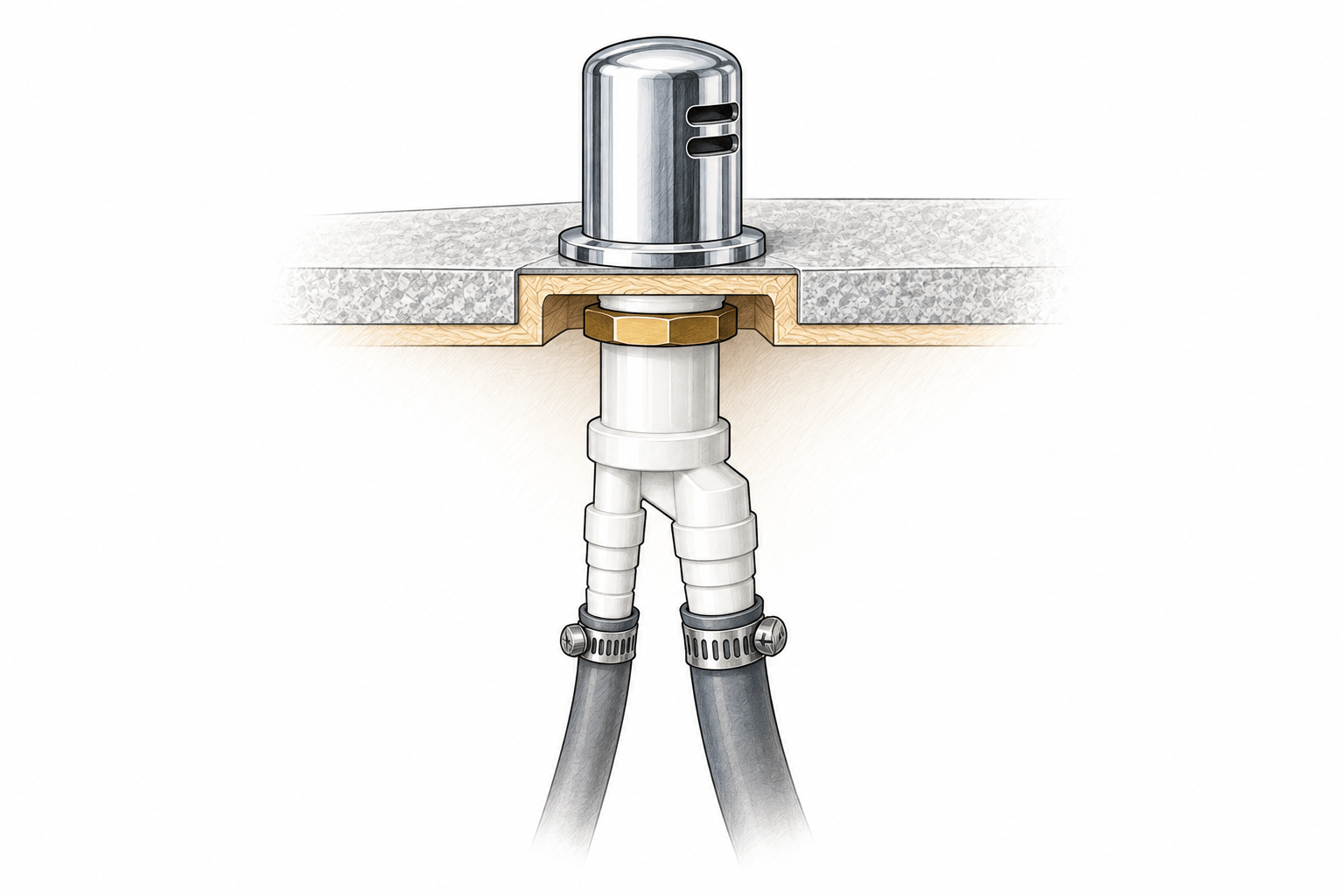

The cap sits above the counter; the hose connections are underneath. Note where water first appears before choosing the next check in the guide.
- Above-counter capNote whether water appears at the cap or below the counter.
- Inlet connectionThe smaller hose comes from the dishwasher.
- Outlet connectionThe larger hose leads toward the approved drain connection.
Start with where the water appears
What an air gap does
A dishwasher air gap creates a physical break between the dishwasher’s discharge and the home’s drain system. GE explains that this helps prevent backflow into the dishwasher when the drain system clogs. Requirements vary by location and installation. Do not remove a required air gap or substitute a different drain arrangement just because the current fitting overflows. GE’s air-gap explanation and cleaning guidance.
Separate an overflow from an under-sink leak
Water spilling out of the top of the air gap while the dishwasher drains points you toward a drainage restriction. Water dripping below the countertop may instead involve a hose, clamp, fitting, or mounting problem. Both can occur at once. Dry the accessible area and note where water first appears rather than buying an air-gap replacement by default.
If water is near an outlet, disposal wiring, or another electrical component, keep clear of the wet equipment and get help. Do not continue running the dishwasher to reproduce a leak that is already causing damage.
Checks you can make without taking the plumbing apart
- Stop the cycle. Follow the appliance instructions. GE says to have the dishwasher latch off or unlatched before removing a typical air-gap cover.
- Look inside the accessible top. On a serviceable design, remove the decorative cover and inner cap as directed. Clear visible debris and reinstall the parts correctly.
- Look at the drain hose route. An obvious kink, crushed section, or poor connection needs attention. Do not pull hard on a hose you cannot see end to end.
- Check the sink. If the sink is backing up too, an air-gap brush alone is unlikely to fix the larger drain problem.
GE also flags the dishwasher inlet plug on a newly installed disposal as a potential drainage issue. If the trouble started right after a disposal change, have that connection checked against the disposal’s installation instructions. Do not reach into a powered disposal. GE dishwasher drainage guidance.
A cleaning aid or an early warning?
Choose only after the checks above. The brush may help with accessible buildup; the alarm warns about escaping water after placement. Neither repairs a damaged connection or replaces diagnosis of recurring overflow.
Affiliate disclosure: As an Amazon Associate, Sergeant Plumber Corp. may earn from qualifying purchases. If you buy through a link on this page, Sergeant Plumber Corp. may earn a commission at no additional cost to you.
These are specification-based options, not a ranked hands-on test of every product. Our project photos illustrate the work; they do not establish that every linked model was used on that job. Always confirm fit and current instructions.
For compatible, accessible buildupFryOilSaver flexible dishwasher air-gap brush
A 48-inch flexible cleaning brush to consider for compatible, accessible air-gap passages. Confirm the selected model and dimensions against FryOilSaver’s B291C product details.
Before you buy: Match the brush to the passage and the appliance instructions. Do not force it around blind bends or use it to diagnose a backed-up sink. Read the brush-use limits.
View the air-gap brush on Amazon
Paid link · Confirm the selected model and package before ordering.
For an audible water warningZircon Leak Alert water alarm
A basic audible water alarm for a vulnerable area where escaping water can reach its contacts.
Before you buy: Test it and follow placement instructions. It does not repair a leak, send phone alerts, or automatically shut off the water. Check the appliance-area placement guidance.
View the Zircon alarm on Amazon
Paid link · Confirm the selected model and package before ordering.
When a cleaning brush helps
A flexible brush may help remove accessible buildup from a compatible air-gap passage or removable hose. Match the brush diameter and construction to the passage. A long brush is not a license to force it around blind bends or push debris deeper into the system. If it catches, stop. Keep cleaning tools dedicated to this dirty job and away from food-preparation surfaces.
Use a towel or shallow container to protect the cabinet while inspecting. Avoid chemical drain cleaner in the dishwasher or air gap; it is not a substitute for identifying the obstruction, and it creates another hazard if parts later need disassembly.
When parts are the right purchase
A cracked fitting, damaged hose, or failed connection may need replacement. Match hose sizes, dishwasher requirements, disposal connection, and local installation rules before ordering. An electronic leak alarm can provide an additional warning under the cabinet, but it does not repair the fault or stop the water.
Renters should report the leak promptly and avoid changing the installation without permission. Builders and property managers should check the complete discharge route, not just replace the visible chrome cap.
Call when the simple cleaning does not last
Repeated overflow, a slow kitchen sink, sewage odor, damaged piping, or water that continues after cleaning calls for a closer diagnosis. Sergeant Plumber can help distinguish an air-gap issue from a drain restriction and choose the right repair.
Common questions
Can I tape over the air-gap opening?
No. Blocking it defeats its intended function and can redirect the overflow into another problem.
Do I automatically need a new dishwasher?
No. The cause can be in the air gap or drain connection rather than the dishwasher itself.
Will a longer brush clear every blockage?
No. A brush must fit the accessible passage. Deep, recurring, or shared drain blockages need a different diagnosis.
